Electronics

Next

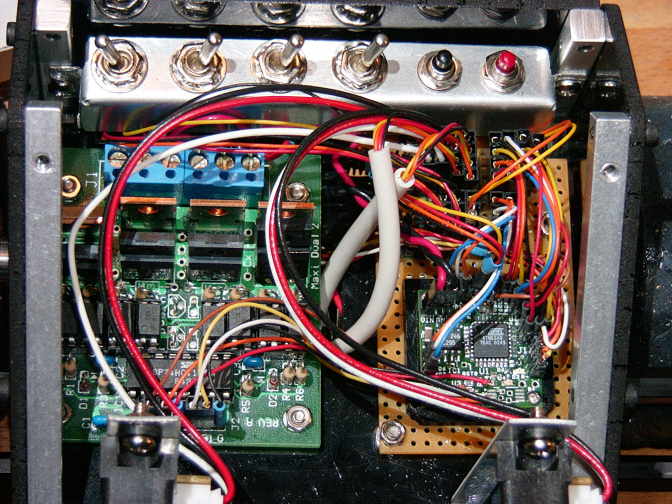

Here's a closeup of the electronics. I'm using the "Maxi Dual 10A H-Bridge" from the "Robot Store" (which doesn't seem to exist anymore), and the MegaBitty purchased from the "Mark III Robot Store". The MegaBitty includes a couple of H-Bridge chips, but they're only rated for 500 ma, so I didn't install them and just soldered wires from the appropriate pads.

The arrangement of the connectors on the MegaBitty wasn't convenient for all of the sensors that I had, so I created a little breakout area on a Radio Shack perfoard to rearrange the connectors the way I wanted them.

The MegaBitty has a 9v battery dedicated to it, and the motors have 10 NiMH AA cells. Bigger...
