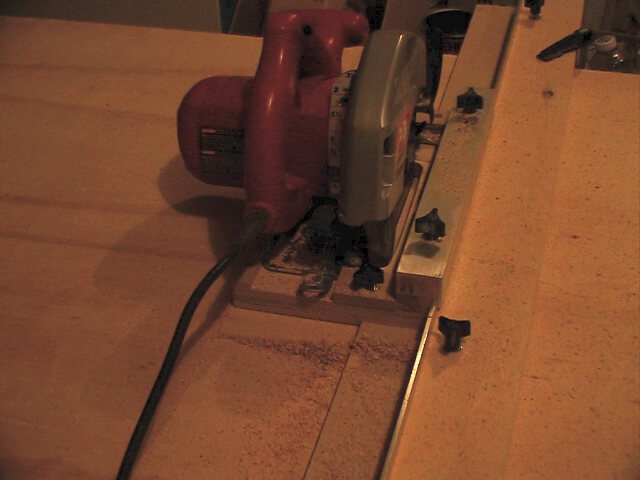

Rear Shot of Cutting Guide

This shows the operator's view of the cutting guide. The aluminum angle has some UHMW slippery tape on the inside and the two knobs allow the pressure on the guide to be adjusted. The knob to the rear of the saw holds the saw to the guide (the front portion slides under a permanent lip). Bigger...
