Gearbox Mounted (another view)

Next

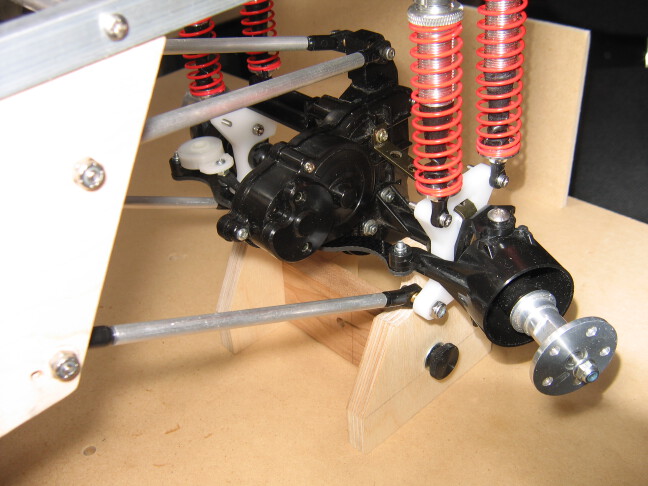

Another view of the gearbox. The steering linkages on the ClodBuster are normally mounted on the front, which makes it reverse ackerman (in normal ackerman, the inside wheel turns more that the outside wheel). I installed an Agressor steering unit from Thunder Tech Racing to get back to normal ackerman. Unfortunately the supplied servo mount is incompatible with the way I mounted my shocks, so I need to make a new one. Bigger...
