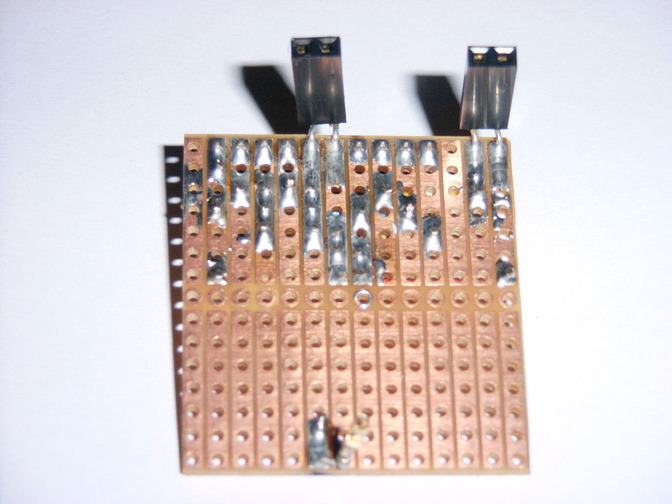

| This is the back side of the line sensor. You can also clearly see the connectors which serve both to mount the board and deliver the appropriate signals to the board. This pin at the bottom (out of focus) doesn't connect electrically to anything. It just provides a mounting point. Bigger... |
