I/O Interface

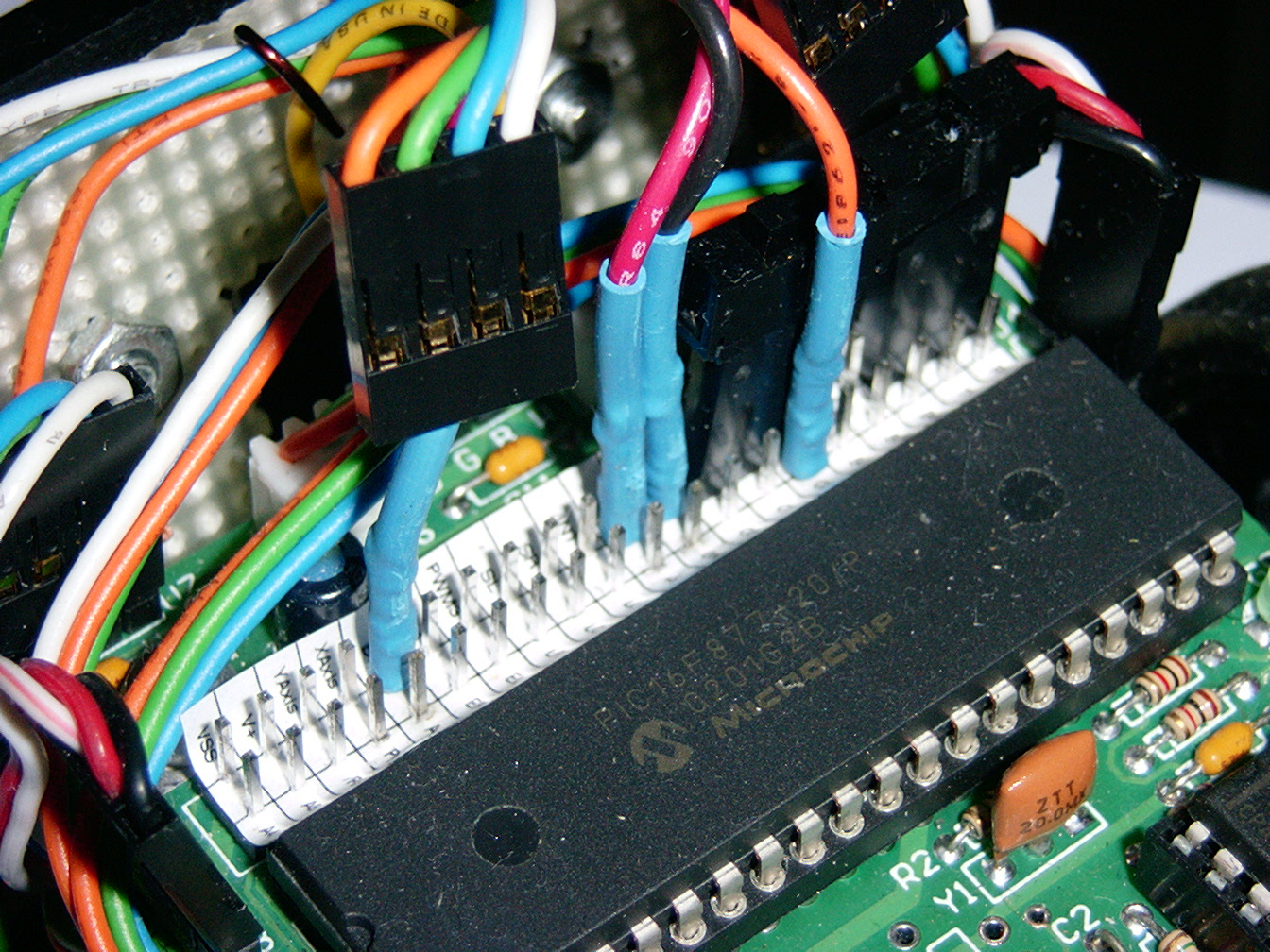

I wasn't sure where else to put this, so it wound up here. This shows the I/O Interface for the PIC. I got tired of couting pins, so I created a a paper template which can be pressed down on the pins to provide labels. A PostScript version and a PDF version are both available. Smaller...
