Close IR Sensor Front

Next

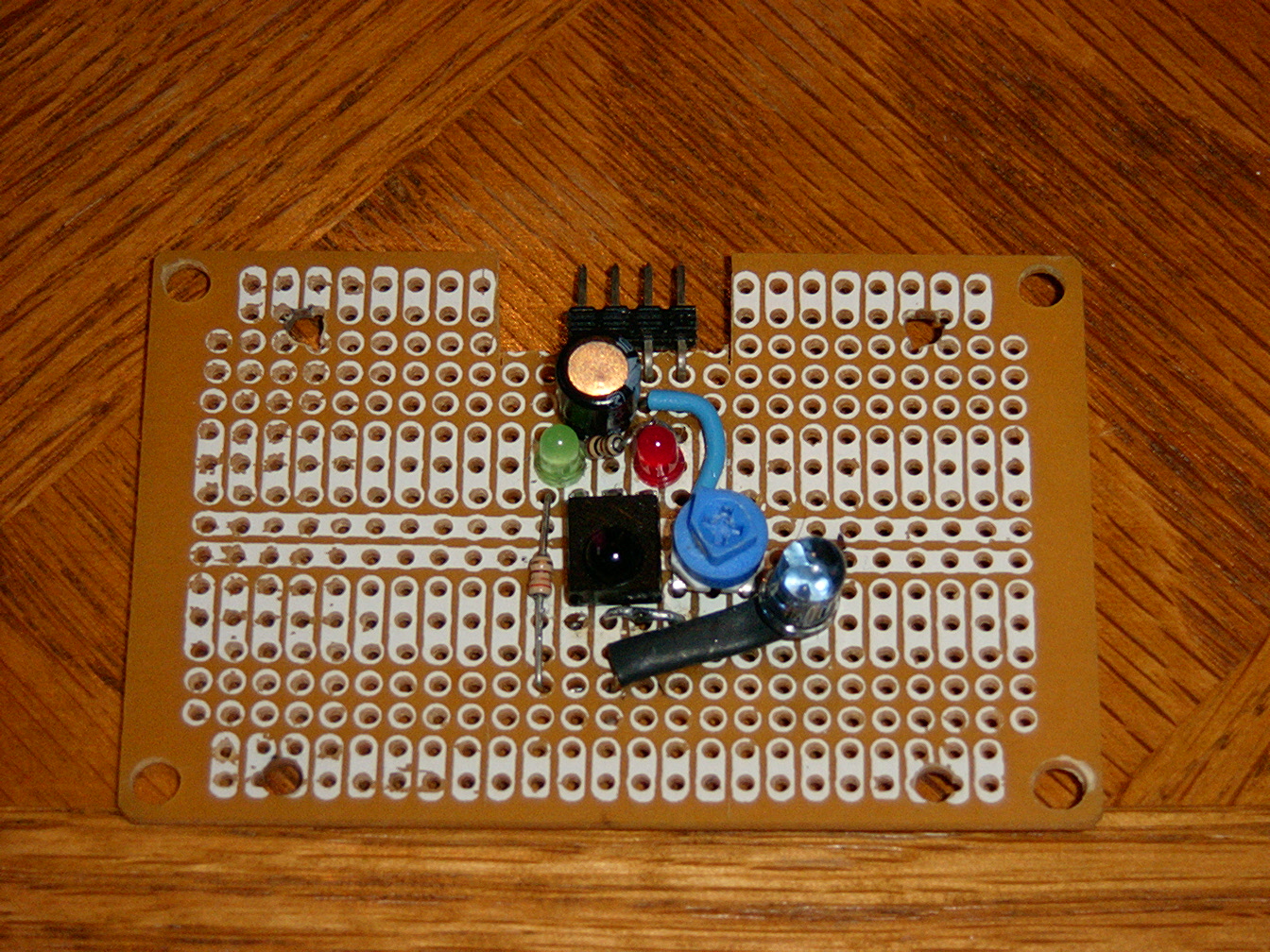

This is the circuit board for the close IR circuit. The IR LED (lower right) is connected to one of the PWM outputs on the PIC. The PWM output is setup to generate a 38 kHz square wave. The Panasonic 4602 IR demodulator (black sqaure in the middle) detects the bounced IR signal. This allows Marauder to detect when another robot is immediately in front of it, and hence ignore the line sensors. This is particularly useful if the other robot has a white or shiny scoop and gets under Marauder's scoop. Marauder doesn't want to detect the opponent's scoop as the white line at the edge of the ring. Smaller...
