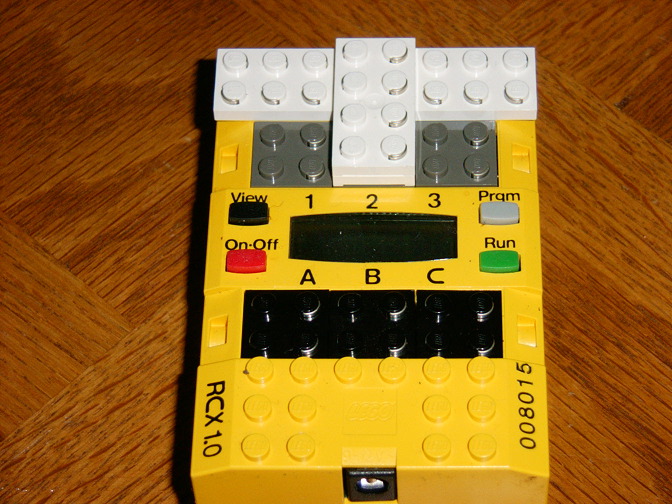

| Each antenna feeler goes to a separate RCX input. The light sensor and the two touch switches on the bottom are all connected in parallel. The touch switches are normally open, and the light sensor value is read on the input. If either touch sensor is activated, then the light sensor reads 100%. Bigger... |
