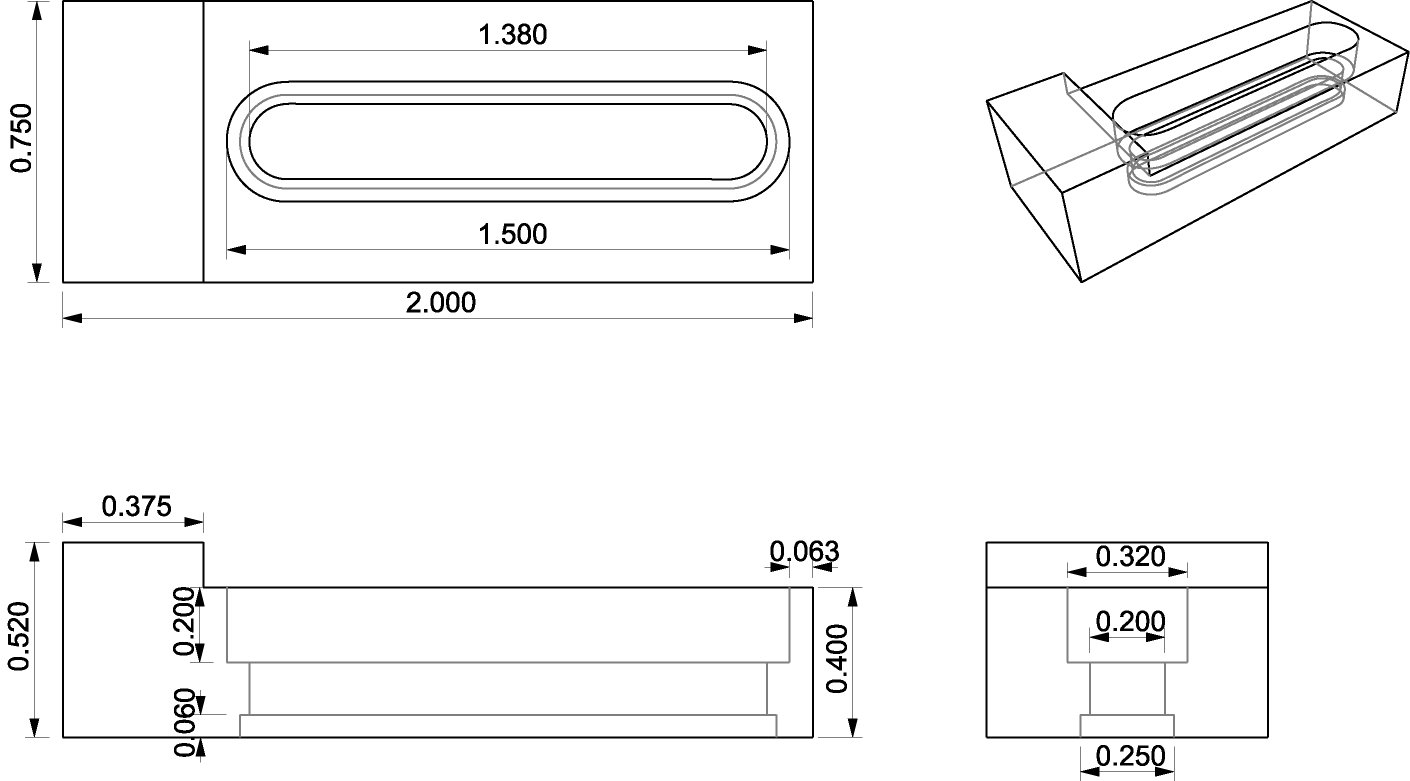

Here's a dimensioned drawing of the fixed clamp. It's also available in PDF form, and Rhino form. The drawing doesn't show it, but I also milled a small relief in the inside corner of the clamp using a 1/16" endmill with the workpiece mounted at a 45 degree angle. Smaller...
