Parts laid out

Next

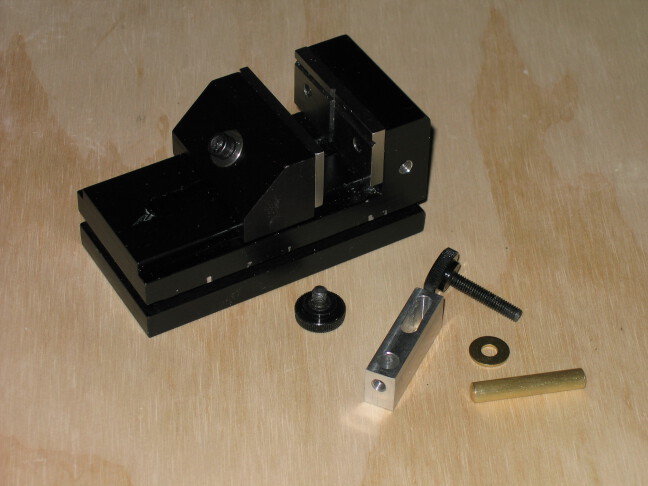

Here are all of the parts laid out. The screws are 10-32 socket head cap screws, with little plastic thumbscrew pieces pressed on. I picked these ones up at my local fastener place. The aluminum piece started out from a piece of 3/8" x 1/2" stock I had lying around. This piece wound up being 1.56" long. The brass piece if 0.25" in diameter. Bigger...
