| Prev | Sliding Shaft Position |
Next |
|
|

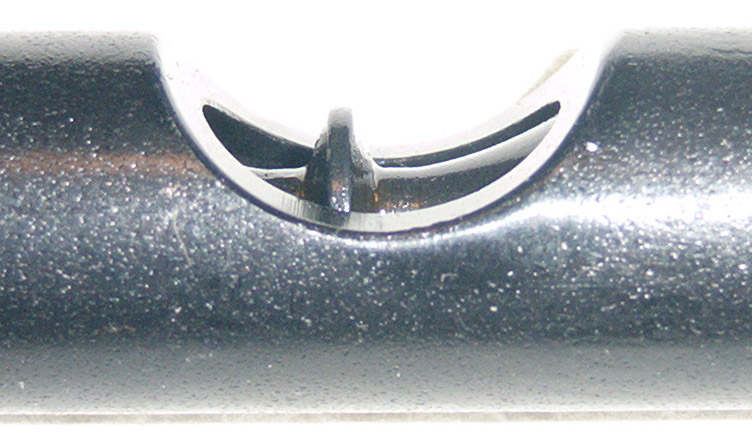

This is about where the sliding shaft should be when the fixed shaft is in
the correct position.
Carefully insert the leadscrew support back into the lathe base, with the curved portion pointing down. Put the screws back in. The engagement lever should slide in throught the hole in the front of the base and engage with "bump" on the sliding shaft. Smaller... |
