Simulation of Hex

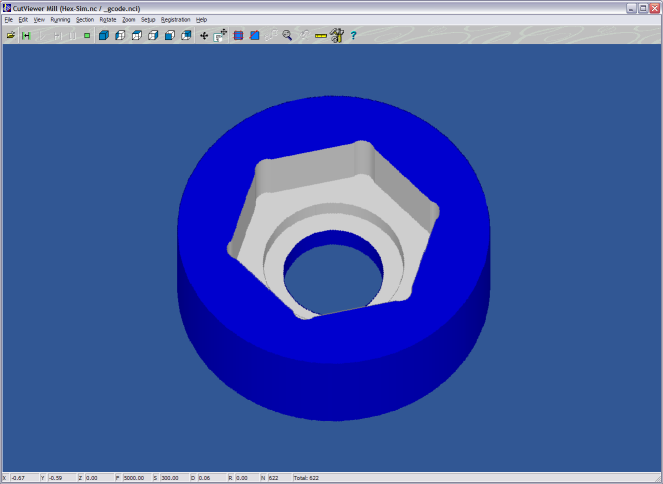

I wrote a perl program, which I called Hex.pl to generate the G-Code. There is a variable near the top of the file called $sim. Setting this variable to 1 causes Hex-Sim.nc to be produced, which is what I used to generate the simulation pictured here. Setting $sim to 0 generates Hex.nc which is the file I used to machine the actual hex. Bigger...
