Power Supply Installed

Next

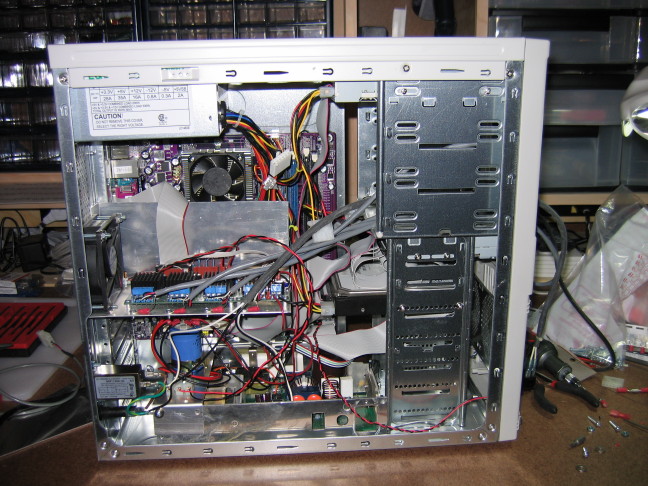

And here's a photo with the new power supply installed. I relocated the 120v connector and fuse and threw my capacitor on the 24v output. I read somewhere that this was recommended when using switching power supplies.

Since the new supply had 5v, I connected that up for the Xylotex as well, so now when I power off the supply, it also completely powers down the Xylotex board so I can unplug steppers. I was using the power steal cable before, and I had to powerdown the computer before.

I didn't like the exposed 120v wiring, so I put some heat-shrink over all of the 120v connectors (not present in this photo). Bigger...
