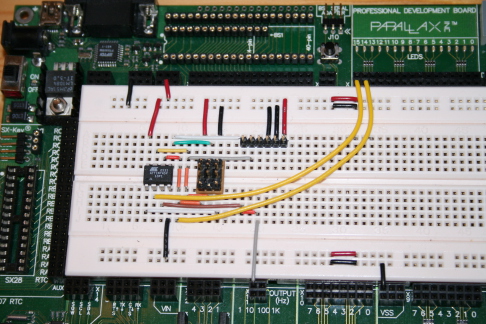

This is a closeup of the wiring. The squarish block of headers just to the right of the ATtiny45 is the ISP connector. The gray vertical wire near the bottom is the input line. The Parallax Professional Development Board includes a pulse generator which I used for verifying the functionality. Bigger...
