Schematic

Next

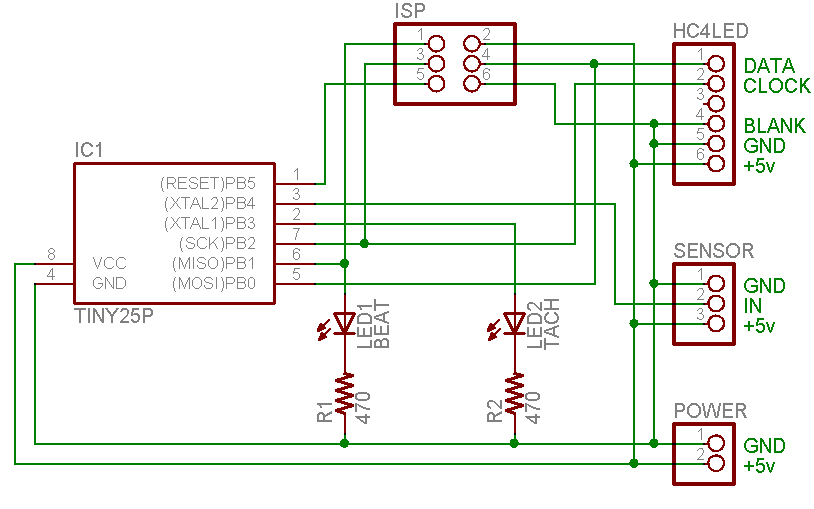

The schematic for the tachometer. The LEDs and ISP connector are optional. The BEAT LED flashes once per second and indicates that the tach is running. The TACH LED flashes when the software detects a pulse on the input line. Both of these LEDs are primarily for debugging. Smaller...
